SPECIFICATIONS

EXPAND ALL COLLAPSE ALL

  • Engine

    ModelKomatsu SAA6D125E-7
    TypeWater-cooled, 4-cycle, direct injection
    AspirationTurbocharged, aftercooled
    Number of Cylinders6
    Bore x Stroke125 mm x 150 mm
    Piston Displacement11.04 ltr
    Horsepower, Gross - SAE J1995270 kW / 362 HP
    Horsepower, Net - ISO 9249 / SAE J1349268 kW / 359 HP
    Rated RPM1900
    Fan drive methodHydraulic
    Emissions certificationEPA Tier 4 Final

  • Hydraulic System

    TypeHydrauMind System
    Number of selectable working modes6
    Main pump typeVariable displacement piston type
    Pump forBoom, arm, bucket, swing, and travel circuits
    Maximum flow780 ltr/min
    Hydraulic Motors
    Travel2 x axial piston motor with parking brake
    Swing1 x axial piston motor with swing holding brake
    Relief Valve Setting
    Implement circuits380 kgf/cm3
    Travel circuit380 kgf/cm3
    Swing circuit285 kgf/cm3
    Pilot circuit33 kgf/cm3
    Hydraulic CylindersBore x Stroke x Rod diameter
    Boom2-160 mm x 1570 mm x 110 mm
    Arm1-185 mm x 1820 mm x 120 mm
    Bucket1-160 mm x 1270 mm x 110 mm

  • Drives and Brakes

    Steering controlTwo levers with pedals
    Drive methodFully hydrostatic
    Maximum drawbar pull329 kN 33510 kgf
    Gradeability70 %
    Travel speeds3.0 / 5.5 km/h
    Service brakeHydraulic lock
    Parking brakeMechanical disc brake

  • Swing System

    Driven byHydraulic motor
    Swing reductionPlanetary gear
    Swing circle lubricationGrease-bathed
    Service brakeHydraulic lock
    Swing lockMechanical disc brake
    Swing speed9.1 rpm

  • Undercarriage

    Center frameX-frame leg
    Track frameBox-section
    Track typeSealed track
    Track adjusterHydraulic
    Number of shoes (each side)49
    Number of carrier rollers (each side)2
    Number of track rollers (each side)8
    Shoe size & type600 mm triple grouser

  • Coolant & Lubricant capacity

    Fuel tank650 ltr
    Coolant47 ltr
    Engine38 ltr
    Final drive, each side11.0 ltr
    Swing drive20 ltr
    Hydraulic tank248 ltr
    DEF tank39

  • Weights

    Operating weight47,890 - 49,680 kg

  • Dimensions (transport position)

    Length, overall (mm)11930
    Track length on ground (mm)4350
    Track gauge (mm)2740
    Overall track width (mm)3340
    Overall height (mm)3635
    Ground clearance (mm)568

  • Operation

    Boom size (m) & type7.0 Heavy duty
    Arm size (m) & type3.4 Heavy duty
    Arm crowd force - ISO (kgf)21800
    Bucket crowd force - ISO (kgf)28000
    Digging depth - maximum (mm)7755
    Digging reach - maximum (mm)12030
    Maximum reach @ ground level11810
    Swing radius (mm)3645

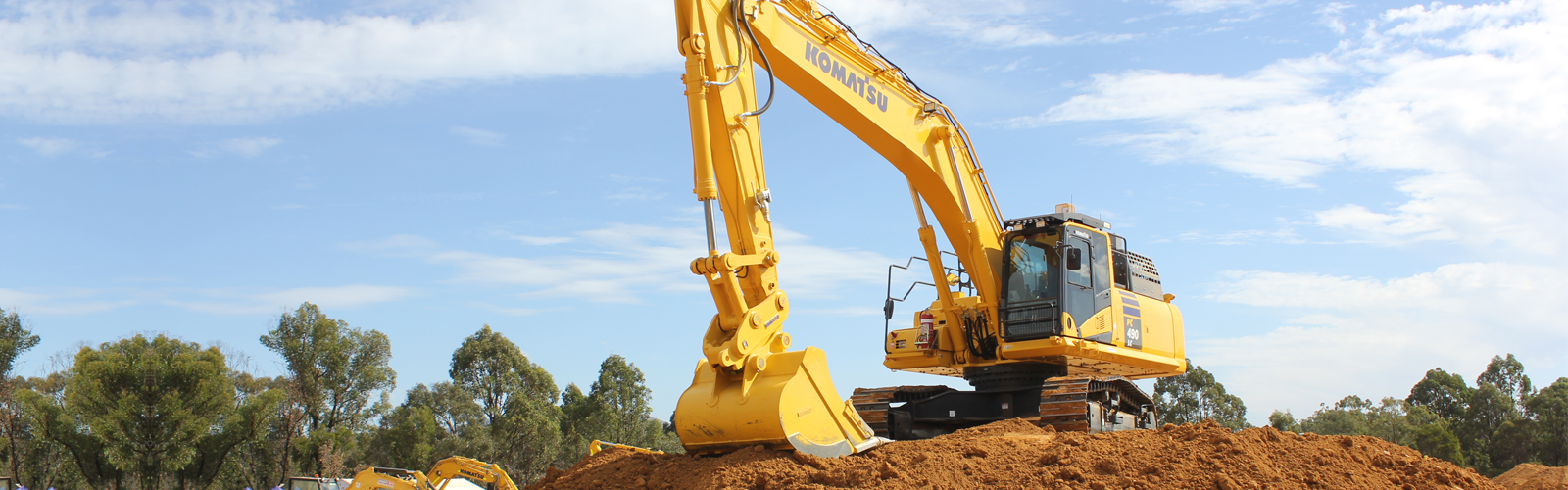

PC490LC-11 Excavators

Now powered by a new technology Komatsu engine, our PC490LC-11 is designed for heavy construction, quarrying and demolition applications, delivering high productivity and lower owning and operating costs. PC490LC-11SE also available.  Key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our Komtrax remote monitoring and location system, backed by our Australia-wide service and support network.

Tier 4 Engine KDPF Regeneration



  • 268 kW / 359 HP
    ENGINE POWER
  • 48,690 kg
    OPERATING WEIGHT
  • 2.7 m³
    BUCKET CAPACITY

PC490LC-11 Excavators

Performance, Durability and Fuel Economy

A large machine design with a reinforced undercarriage coupled with a new Tier 4 Final engine gives the PC490LC-11 unrivaled performance while reducing fuel consumption.

Current Offers

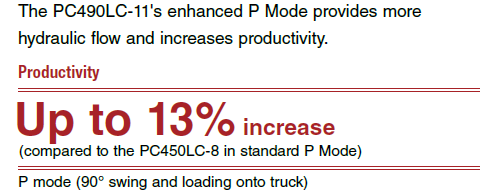

Enhanced Productivity

Enhanced power mode with increased hydraulic flow provides up to 13% improvement in productivity.

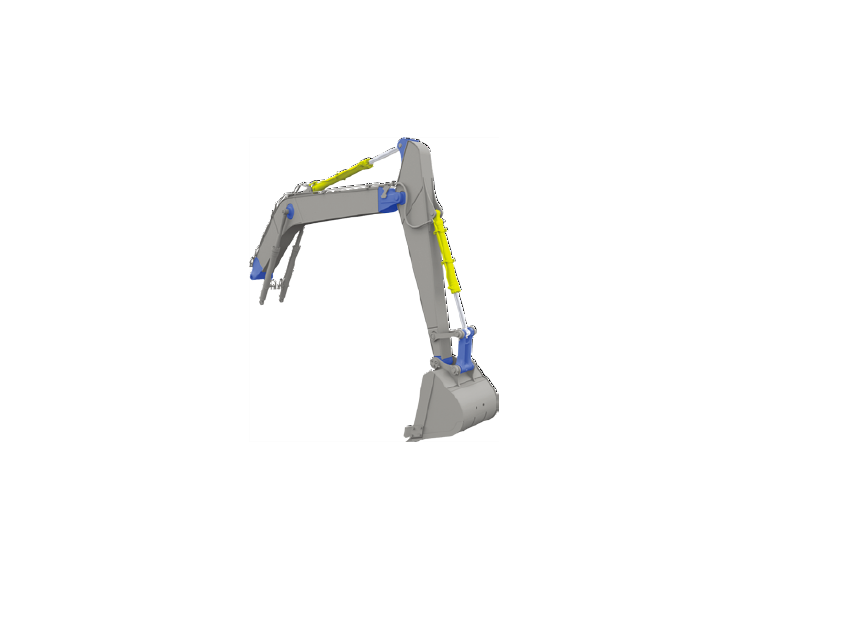

Super Stability & Durability

Heavy duty, reinforced undercarriage and larger counterweight provide high lift capacity, lateral stability and added durability.

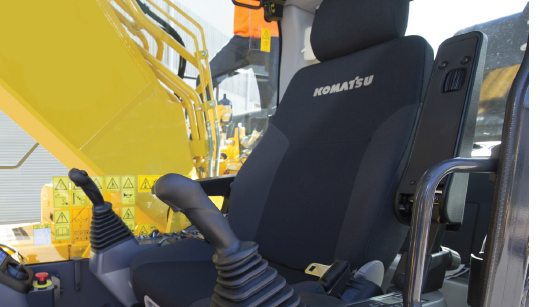

Comfortable Working Space

The wide spacious cab includes a heated air suspension seat with reclining backrest. The seat height and position are easily adjusted using a pull-up lever. The armrest position is easily adjusted together with the console. Reclining the seat further enables it to be fully laid back with the headrest attached.
